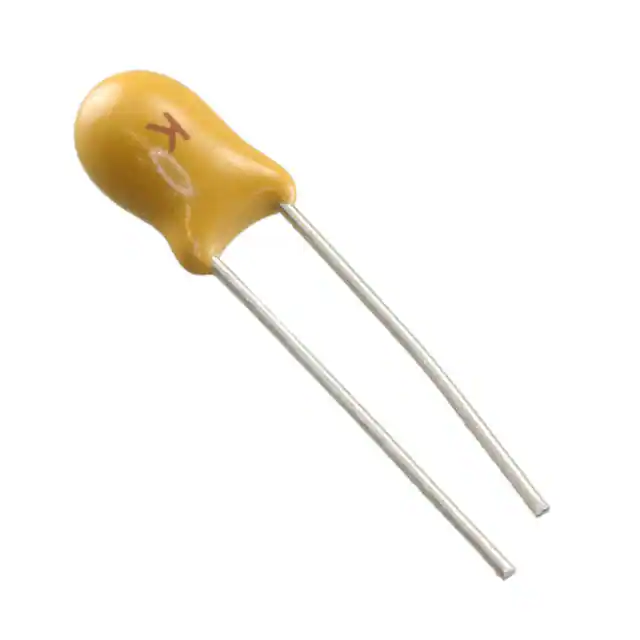

| Part Number | TAP685K020SRW | TAP685K025SRW | TAP685M020SRW | TAP685K050SRW | TAP685J020SRW | TAP685K010SRW | TAP685K020CRW |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 6.8 µF | 6.8 µF | 6.8 µF | 6.8 µF | 6.8 µF | 6.8 µF | 6.8 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±5% | ±10% | ±10% |
| Voltage - Rated | 20 V | 25 V | 20 V | 50 V | 20 V | 10 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 3.6Ohm @ 100kHz | 3.1Ohm | 3.6Ohm | 2Ohm @ 100kHz | 3.6Ohm @ 100kHz | 6Ohm @ 100kHz | 3.6Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.276" Dia (7.00mm) | 0.197" Dia (5.00mm) | 0.177" Dia (4.50mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.413" (10.50mm) | 0.354" (9.00mm) | 0.295" (7.50mm) | 0.413" (10.50mm) |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) |
| Manufacturer Size Code | D | D | D | H | D | B | D |
| Ratings | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
