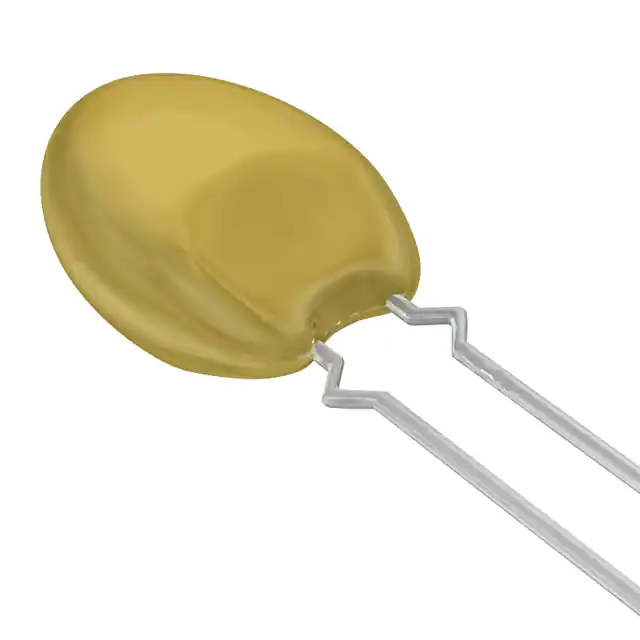

| Part Number | TAP226M020GSB | TAP226K020GSB | TAP226M010GSB |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±10% | ±20% |
| Voltage - Rated | 20 V | 20 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1.8Ohm | 1.8Ohm | 2.7Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.217" Dia (5.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.413" (10.50mm) |
| Lead Spacing | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Manufacturer Size Code | H | H | E |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
