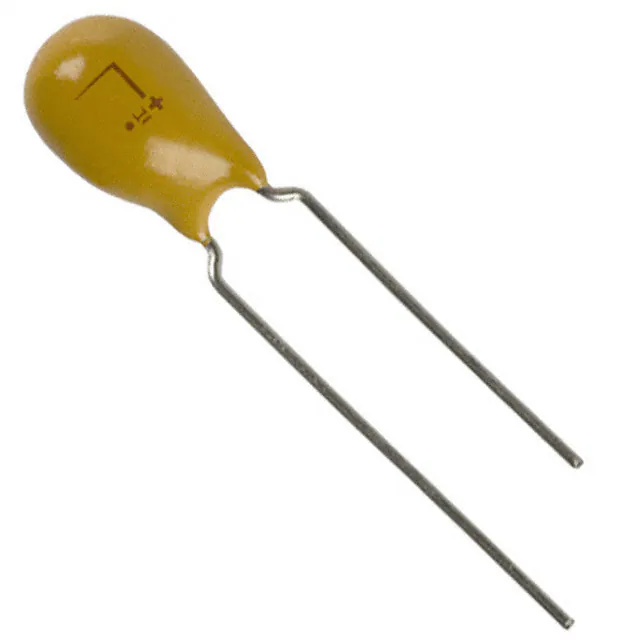

| Part Number | TAP156K016CCS | TAP156K016SCS | TAP157K016CCS | TAP156M016CCS | TAP156K016FCS | TAP156K016CRS | TAP155K016CCS | TAP156K006CCS | TAP156K010CCS |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 150 µF | 15 µF | 15 µF | 15 µF | 1.5 µF | 15 µF | 15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V | 6.3 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 2.5Ohm | 2.5Ohm | 600mOhm | 2.5Ohm | 2.5Ohm | 2.5Ohm @ 100kHz | 10Ohm | 5Ohm | 3.7Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.354" Dia (9.00mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.177" Dia (4.50mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.354" (9.00mm) | 0.630" (16.00mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.335" (8.50mm) | 0.394" (10.00mm) | 0.413" (10.50mm) |
| Lead Spacing | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Manufacturer Size Code | E | E | N | E | E | E | A | C | D |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - |
