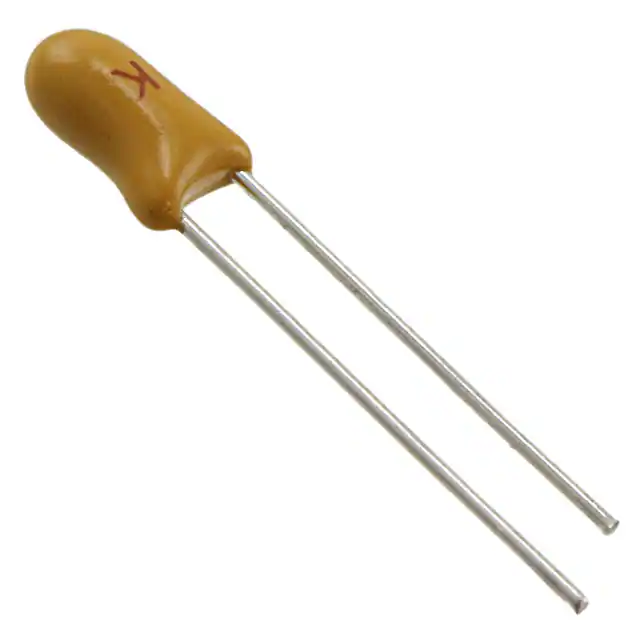

| Part Number | TAP106M016SRW | TAP106K016SRW | TAP106M006SRW | TAP106M010SRW | TAP106M016BRW | TAP106M016CRW | TAP106M016SRS |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±10% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 6.3 V | 10 V | 16 V | 16 V | 16 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 3.2Ohm | 3.2Ohm | 6Ohm | 5Ohm | 3.2Ohm | 3.2Ohm | 3.2Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.177" Dia (4.50mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.295" (7.50mm) | 0.335" (8.50mm) | 0.354" (9.00mm) | 0.413" (10.50mm) | 0.354" (9.00mm) |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Manufacturer Size Code | D | D | B | C | D | D | D |
| Ratings | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
