Please send RFQ , we will respond immediately.

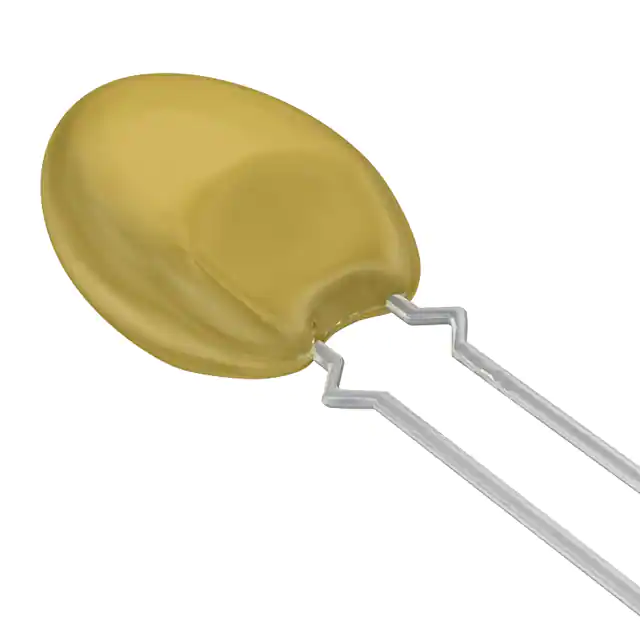

| Part Number | TAP106K035GSB | TAP106K035HSB | TAP106M035GSB | TAP106K025GSB |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 35 V | 35 V | 35 V | 25 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 2Ohm | 2Ohm | 2Ohm | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.217" Dia (5.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.413" (10.50mm) |
| Lead Spacing | 0.125" (3.18mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Manufacturer Size Code | F | F | F | E |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
