Please send RFQ , we will respond immediately.

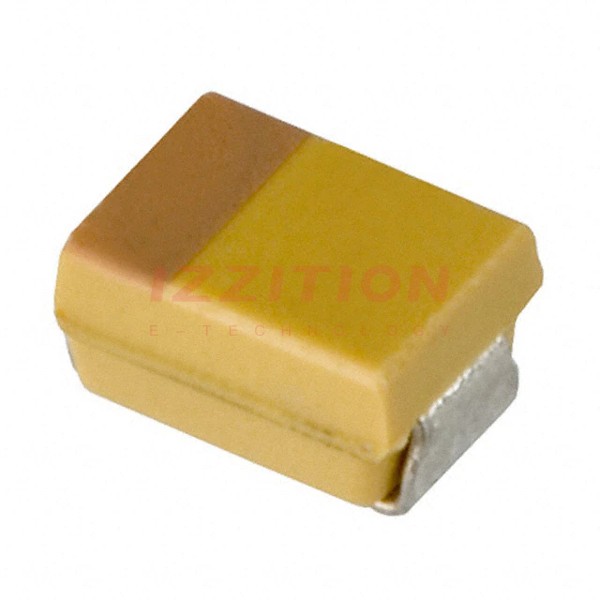

| Part Number | TAJR156K006RNJ | TAJR156M006RNJ | TAJK156K006RNJ | TAJP156K006RNJ | TAJR106K006RNJ | TAJR155K006RNJ | TAJR156K002RNJ | TAJR156K004RNJ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF | 15 µF | 10 µF | 1.5 µF | 15 µF | 15 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 2.5 V | 4 V |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 4.1Ohm | 4.1Ohm | 2Ohm | 3.5Ohm | 6Ohm | 2Ohm | 4.1Ohm | 4Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.081" L x 0.053" W (2.05mm x 1.35mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | R | R | K | P | R | R | R | R |
| Ratings | - | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
