Please send RFQ , we will respond immediately.

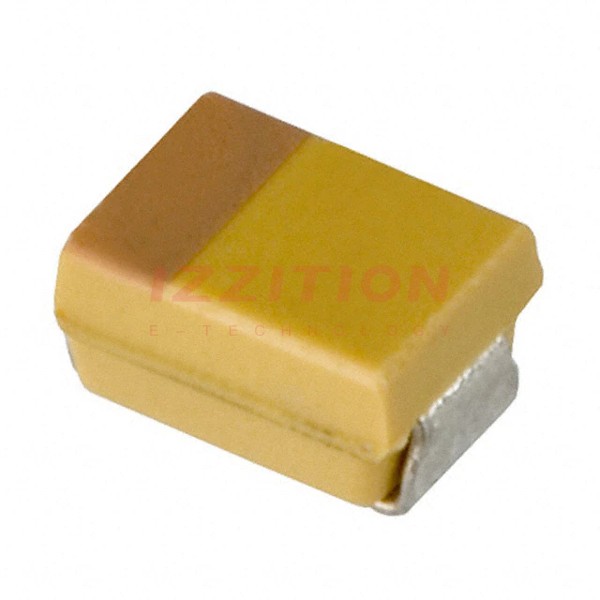

| Part Number | TAJR105M010RNJ | TAJR105M016RNJ | TAJR105M020RNJ | TAJR106M010RNJ | TAJR105M010SNJ | TAJR155M010RNJ | TAJR105K010RNJ |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF | 10 µF | 1 µF | 1.5 µF | 1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 10 V | 16 V | 20 V | 10 V | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 25Ohm | 20Ohm | 20Ohm | 6Ohm | 25Ohm | 20Ohm | 25Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.081" L x 0.051" W (2.05mm x 1.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Manufacturer Size Code | R | R | R | R | R | R | R |
| Ratings | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
