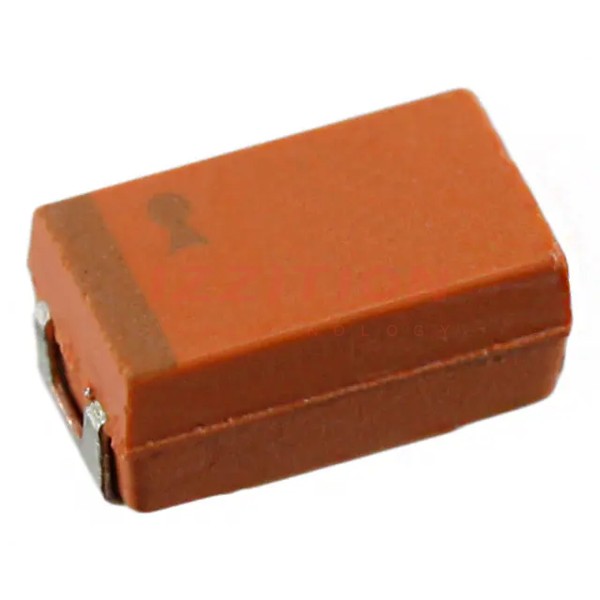

| Part Number | TAJC156K010RNJ | TAJC157K010RNJ | TAJC156K020RNJ | TAJC156K016RNJ | TAJC156K010TNJ | TAJC156M010RNJ | TAJC106K010RNJ |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 15 µF | 150 µF | 15 µF | 15 µF | 15 µF | 15 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 10 V | 10 V | 20 V | 16 V | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | - | 900mOhm | 1.7Ohm | 1.8Ohm | 2Ohm @ 100kHz | - | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Manufacturer Size Code | C | C | C | C | C | C | C |
| Ratings | - | - | - | - | AEC-Q200 | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
