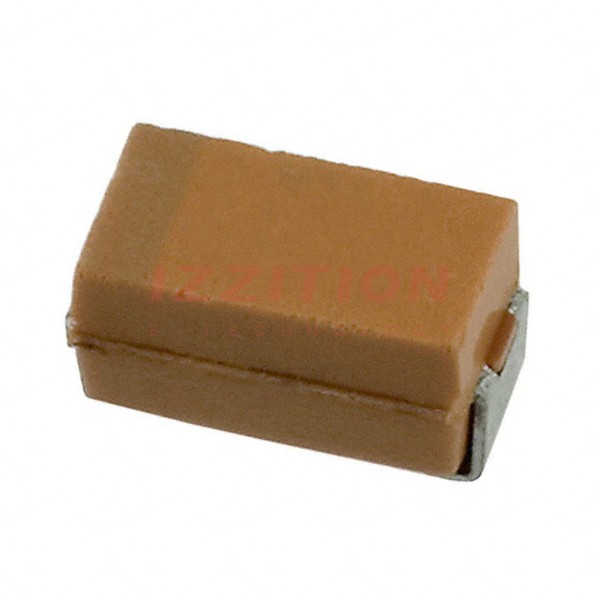

| Part Number | TAJA685K010RNJ | TAJA685K010TNJ | TAJA685K016RNJ | TAJA685K020RNJ | TAJA685M010RNJ |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 6.8 µF | 6.8 µF | 6.8 µF | 6.8 µF | 6.8 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% |
| Voltage - Rated | 10 V | 10 V | 16 V | 20 V | 10 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 4Ohm | 4Ohm @ 100kHz | 3.5Ohm | 2.4Ohm | 4Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | A | A | A | A | A |
| Ratings | - | AEC-Q200 | - | - | - |
| Features | General Purpose | Automotive | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
