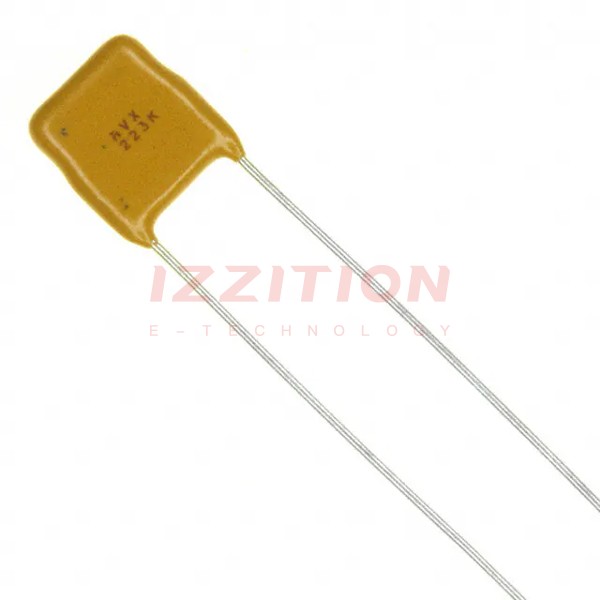

| Part Number | SV13CC102KAR | SV13CC104KAR | SV13CC152KAR | SV13CC103KAR | SV13HC102KAR | SV13CC102JAR |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 0.1 µF | 1500 pF | 10000 pF | 1000 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage - Rated | 630V | 630V | 630V | 630V | 3000V (3kV) | 630V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.300" L x 0.200" W (7.62mm x 5.08mm) |
| Height - Seated (Max) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight |
