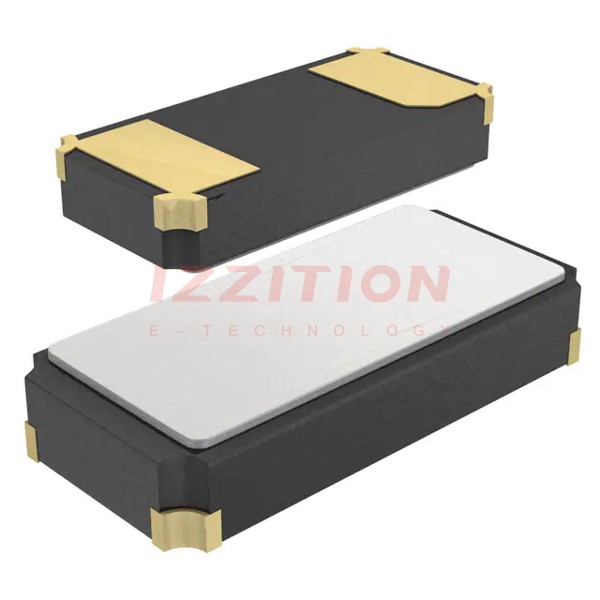

| Part Number | ST2012SB32768B0HPWBB | ST2012SB32768C0HPWBB | ST2012SB32768E0HPWBB | ST2012SB32768B0HPWB4 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Frequency Stability | ±200ppm | - | - | ±200ppm |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | 6pF | 7pF | 9pF | 6pF |
| ESR (Equivalent Series Resistance) | 80 kOhms | 80 kOhms | 80 kOhms | 80 kOhms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
