Please send RFQ , we will respond immediately.

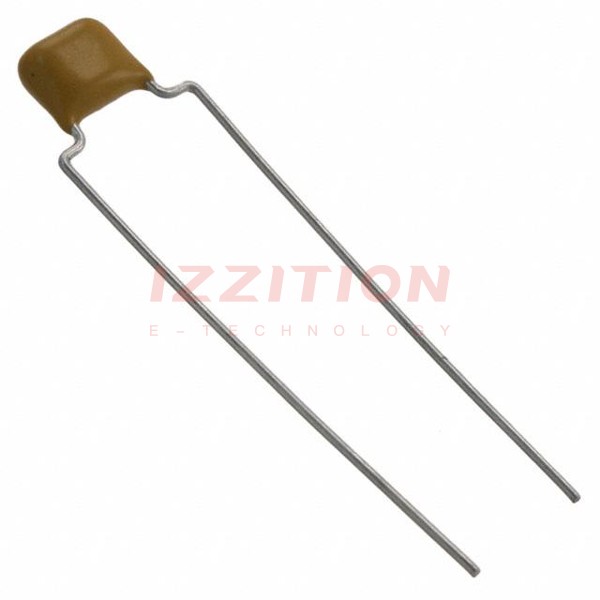

| Part Number | SR501C105KAR | SR505C105KAR | SR501C125KAR | SR501C155KAR | SR401C105KAR | SR501C105JAR | SR501C105KAA |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1.2 µF | 1.5 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage - Rated | 100V | 50V | 100V | 100V | 100V | 100V | 100V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.500" L x 0.200" W (12.70mm x 5.08mm) |
| Height - Seated (Max) | 0.560" (14.22mm) | 0.560" (14.22mm) | 0.560" (14.22mm) | 0.560" (14.22mm) | 0.400" (10.16mm) | 0.560" (14.22mm) | 0.560" (14.22mm) |
| Thickness (Max) | - | - | - | - | - | - | - |
| Lead Spacing | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.200" (5.08mm) | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
