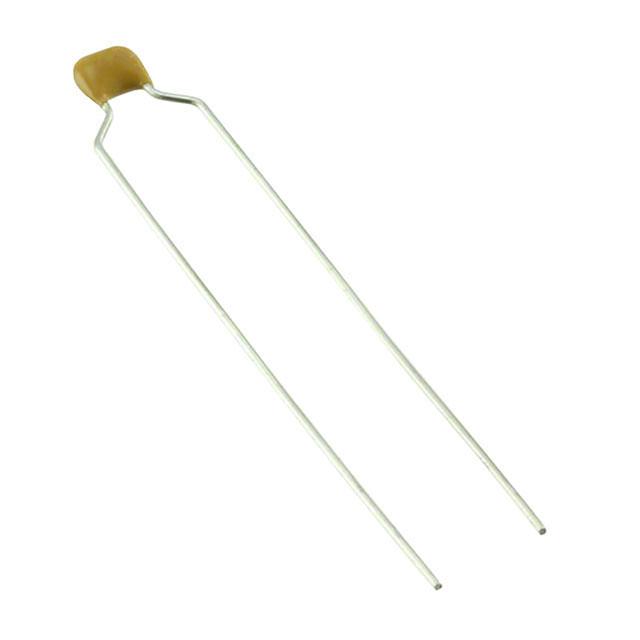

| Part Number | SR221E104MAA | SR225E104MAA | SR221E104MAR |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 100V | 50V | 100V |
| Temperature Coefficient | Z5U | Z5U | Z5U |
| Operating Temperature | 10°C ~ 85°C | 10°C ~ 85°C | 10°C ~ 85°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) |
| Height - Seated (Max) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
