Please send RFQ , we will respond immediately.

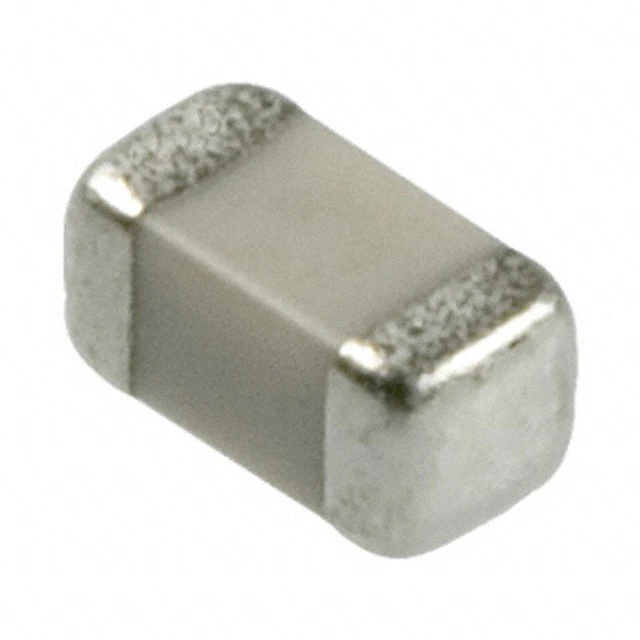

| Part Number | SQCSVA240JAT1A | SQCSVA270JAT1A | SQCSVA200JAT1A | SQCSVA220JAT1A |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 24 pF | 27 pF | 20 pF | 22 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 250V | 250V | 250V | 250V |
| Temperature Coefficient | A | A | A | A |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss | High Q, Low Loss |
| Ratings | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.030" (0.76mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
