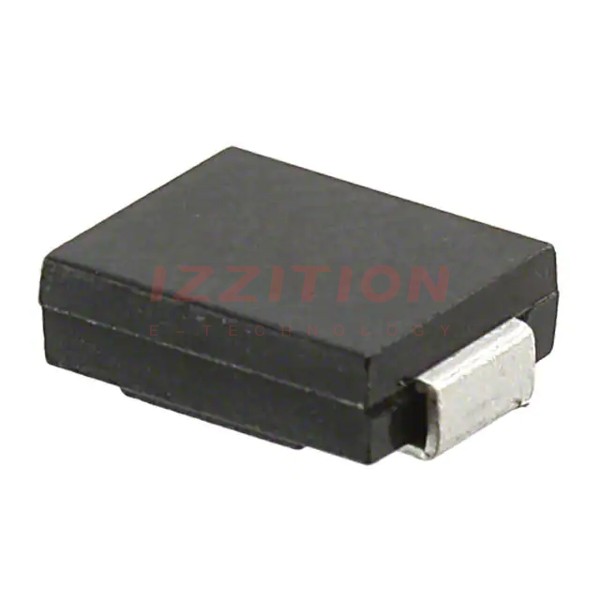

| Part Number | SMCJ90A | SMCJ90CA | SMCJ9V0A | SMCJ90AH | SMCJ90C | SMCJ9.0A | SMCJ90 |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | Littelfuse Inc. | Fairchild Semiconductor | Taiwan Semiconductor Corporation | Meritek | Littelfuse Inc. | Meritek |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | - | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 90V | 90V | 9V | 90V | 90V | 9V | 90V |
| Voltage - Breakdown (Min) | 100V | 100V | 10V | 100V | 100V | 10V | 100V |
| Voltage - Clamping (Max) @ Ipp | 146V | 146V | 15.4V | 146V | 160V | 15.4V | 160V |
| Current - Peak Pulse (10/1000µs) | 10.3A | 10.3A | 97.4A | 10.7A | 9.38A | 97.4A | 9.38A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | - | No | - |
| Applications | General Purpose | General Purpose | General Purpose | Automotive, Telecom | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C (TJ) | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB (SMC) | DO-214AB, SMC | DO-214AB (SMC) |
| Supplier Device Package | DO-214AB (SMC) | DO-214AB (SMCJ) | SMC (DO-214AB) | DO-214AB (SMC) | - | DO-214AB (SMCJ) | - |
