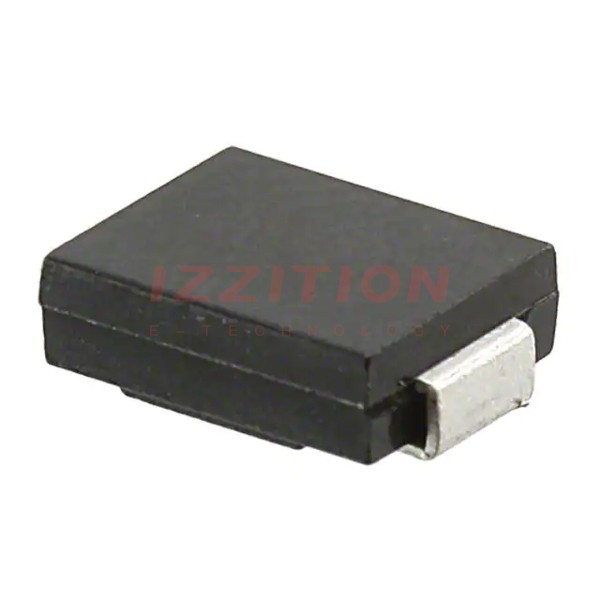

| Part Number | SMCJ140A | SMCJ14A | SMCJ14CA | SMCJ150A | SMCJ140CA | SMCJ140C | SMCJ140 |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | Bourns Inc. | Bourns Inc. | Taiwan Semiconductor Corporation | KYOCERA AVX | Meritek | Meritek |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | - | - | 1 |
| Bidirectional Channels | - | - | 1 | - | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 140V | 14V | 14V | 150V | 140V | 140V | 140V |
| Voltage - Breakdown (Min) | 155V | 15.6V | 15.6V | 167V | 155V | 155.68V | 155.68V |
| Voltage - Clamping (Max) @ Ipp | 227V | 23.2V | 23.2V | 243V | 227V | 250.6V | 250.6V |
| Current - Peak Pulse (10/1000µs) | 6.6A | 64.7A | 64.7A | 6.2A | 6.6A | 5.99A | 5.99A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB (SMC) | DO-214AB (SMC) |
| Supplier Device Package | DO-214AB (SMC) | DO-214AB (SMC) | DO-214AB (SMC) | SMC (DO-214AB) | DO-214AB (SMC) | - | - |
