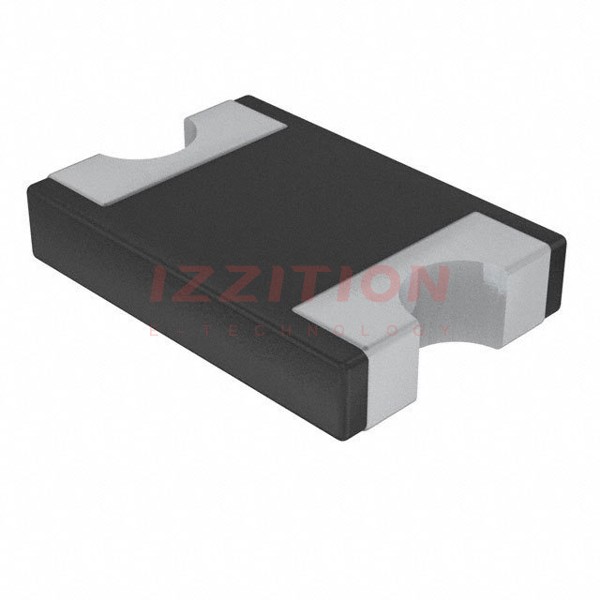

| Part Number | SD2114S040S5R0 | SD2114S040S8R0 |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 5A (DC) | 8A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 5 A | 550 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V | 500 µA @ 40 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | 2114/DO-214AA | 2114/DO-214AA |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
