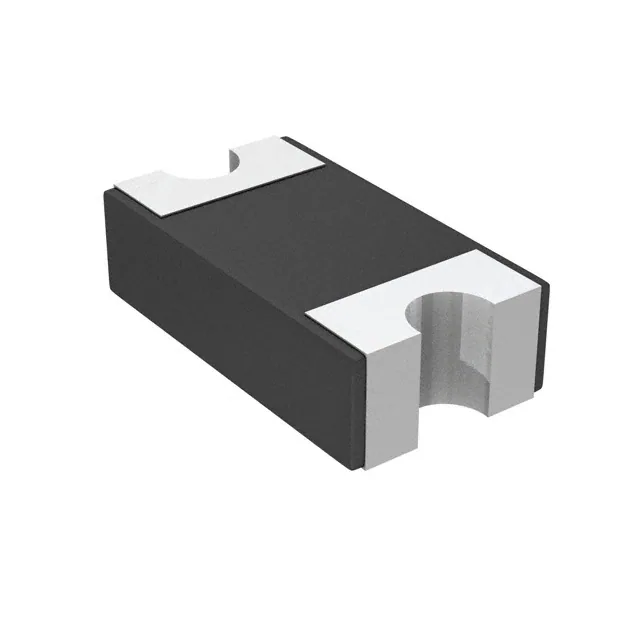

KYOCERA AVX-SD1206S100S1R0 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	1A (DC)
Voltage - Forward (Vf) (Max) @ If:	850 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 µA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206 (3216 Metric)
Operating Temperature - Junction:	-55°C ~ 125°C

KYOCERA AVX SD1206S100S1R0
