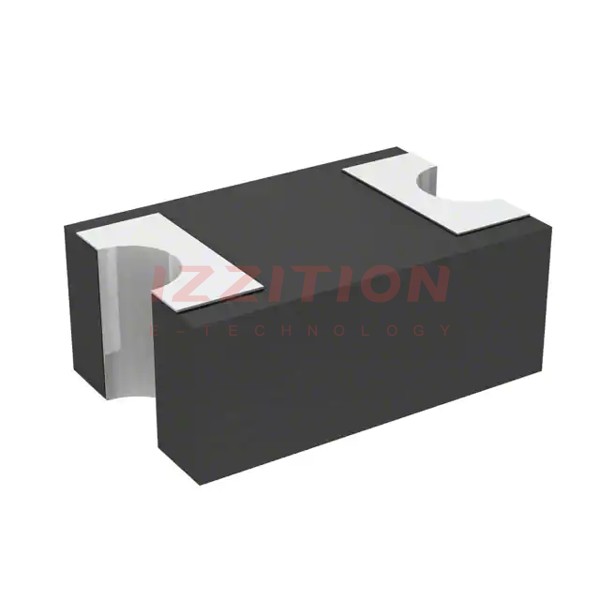

| Part Number | SD0805S040S0R1 | SD0805S040S0R5 |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 100mA (DC) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 100 mA | 480 mV @ 500 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 40 V | 100 µA @ 40 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
