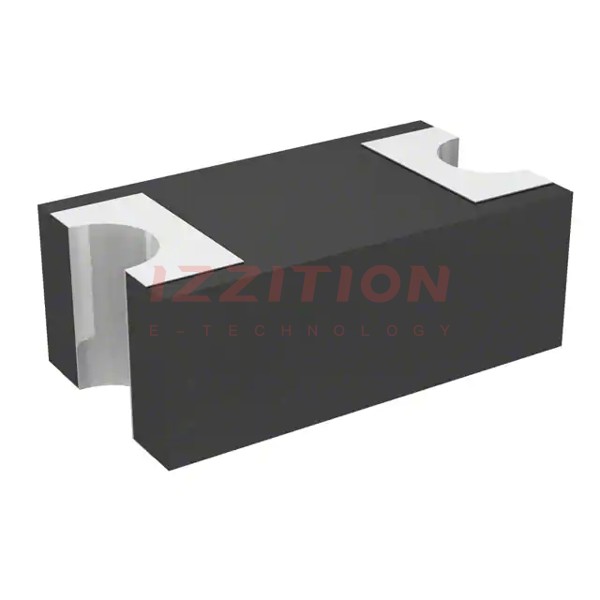

KYOCERA AVX-SD0603S040S0R2 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	450 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 µA @ 40 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Operating Temperature - Junction:	-55°C ~ 125°C

KYOCERA AVX SD0603S040S0R2
