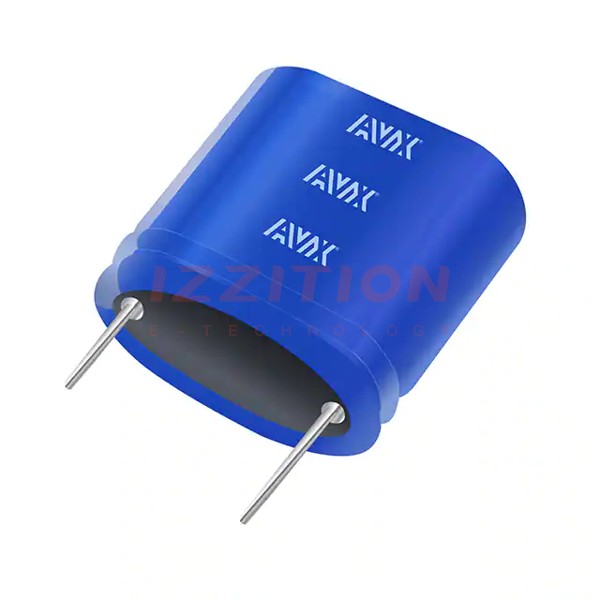

| Part Number | SCMR22G105SRBA0 | SCMR22G105SRBB0 | SCMR22J105SRBA0 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 1 F | 1 F | 1 F |
| Tolerance | -10%, +30% | -10%, +30% | -10%, +30% |
| Voltage - Rated | 7.5 V | 7.5 V | 8.1 V |
| ESR (Equivalent Series Resistance) | 180mOhm @ 1kHz | 180mOhm @ 1kHz | 350mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C | 1000 Hrs @ 65°C | 1000 Hrs @ 65°C |
| Termination | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
| Lead Spacing | 0.531" (13.50mm) | 0.531" (13.50mm) | 0.531" (13.50mm) |
| Size / Dimension | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) | 0.925" (23.50mm) | 0.925" (23.50mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 65°C |
