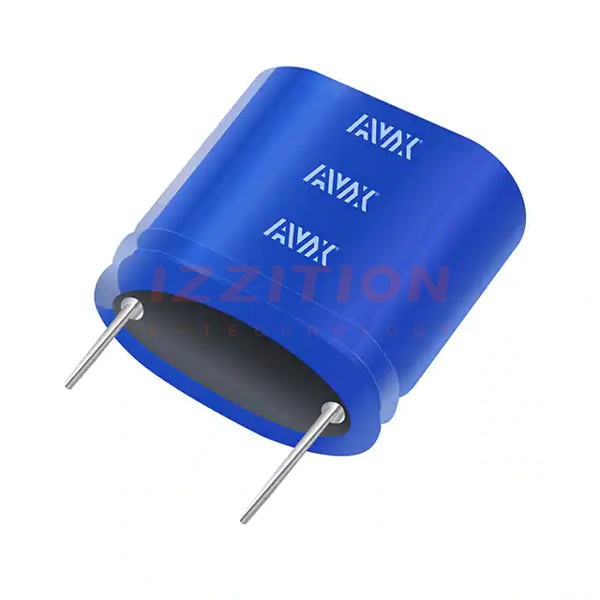

| Part Number | SCMR18J604SRBA0 | SCMR18J604SSBA0 | SCMR18J604SRBB0 | SCMR18G604SRBA0 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 600 mF | 600 mF | 600 mF | 600 mF |
| Tolerance | -10%, +30% | -10%, +30% | -10%, +30% | -10%, +30% |
| Voltage - Rated | 8.1 V | 8.1 V | 8.1 V | 7.5 V |
| ESR (Equivalent Series Resistance) | 400mOhm @ 1kHz | 400mOhm @ 1kHz | 400mOhm @ 1kHz | 225mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 65°C | 1000 Hrs @ 65°C | 1000 Hrs @ 65°C | 1000 Hrs @ 65°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Lead Spacing | 0.531" (13.50mm) | 0.453" (11.50mm) | 0.531" (13.50mm) | 0.531" (13.50mm) |
| Size / Dimension | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 1.047" L x 0.374" W (26.60mm x 9.50mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) | 0.846" (21.50mm) | 0.768" (19.50mm) | 0.768" (19.50mm) |
| Operating Temperature | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 85°C |
