Please send RFQ , we will respond immediately.

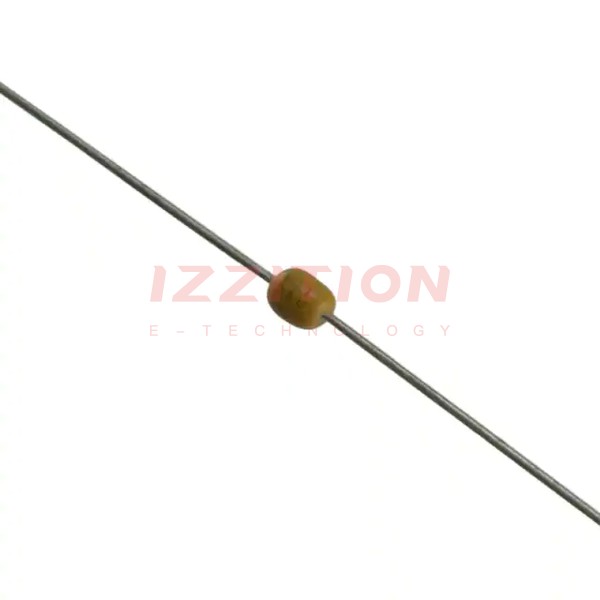

| Part Number | SA301A222JAA | SA301A222JAR | SA301A222JAN | SA301A272JAA | SA301A222JAC | SA301A222KAA | SA301A242JAA | SA301A202JAA | SA301A222FAA | SA301A222GAA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2200 pF | 2200 pF | 2200 pF | 2700 pF | 2200 pF | 2200 pF | 2400 pF | 2000 pF | 2200 pF | 2200 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±1% | ±2% |
| Voltage - Rated | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
