Please send RFQ , we will respond immediately.

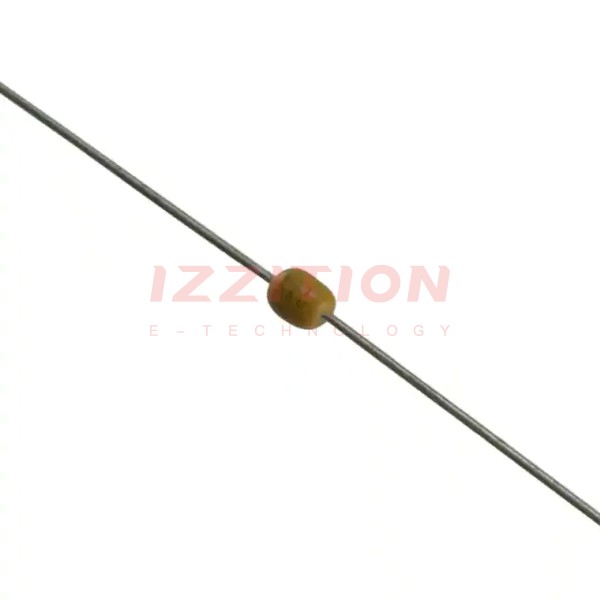

| Part Number | SA102A100JAA | SA102A100JAR | SA102A180JAA | SA102A101JAA | SA102A200JAA | SA102A100KAA | SA102A100JAC | SA102A120JAA | SA102A150JAA | SA102A300JAA | SA102A160JAA | SA102A100CAA | SA102A100DAA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 pF | 10 pF | 18 pF | 100 pF | 20 pF | 10 pF | 10 pF | 12 pF | 15 pF | 30 pF | 16 pF | 10 pF | 10 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±0.25pF | ±0.5pF |
| Voltage - Rated | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V | 200V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
