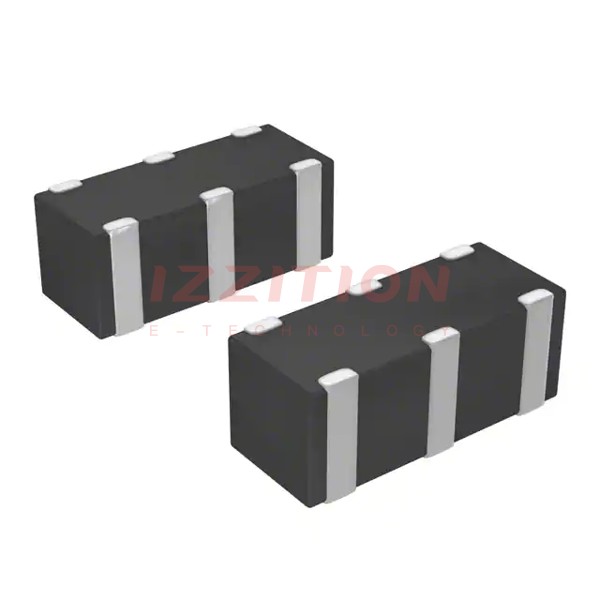

| Part Number | PRQC10.00CR5010X00L | PRQC12.00CR5010X00L | PRQC16.00CR5010X00L | PRQC20.00CR5010X00L | PRQC10.00CR5010X000 |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 10 MHz | 12 MHz | 16 MHz | 20 MHz | 10 MHz |
| Frequency Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF |
| Impedance | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) |
| Height | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
