PDT20116
  • Share:

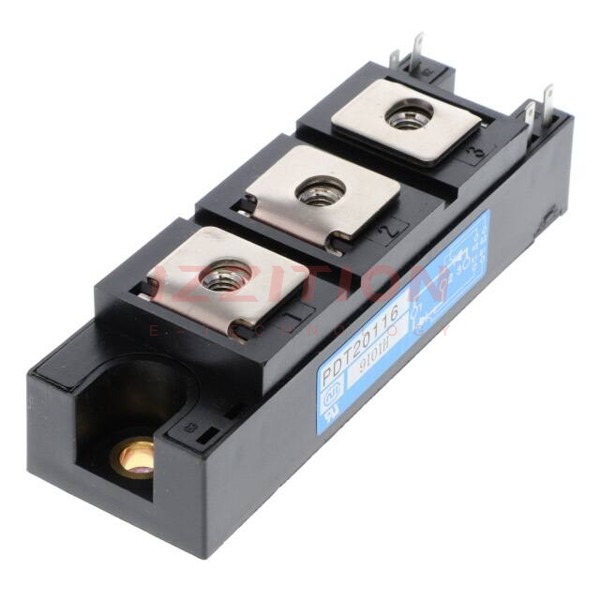

KYOCERA AVX PDT20116

Manufacturer No:
PDT20116
Manufacturer:
KYOCERA AVX
Package:
Bulk
Datasheet:
PDT20116 Datasheet
ECAD Model:
-
Description:
THYRISTOR MODULE PHASE LEG T+T 1
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Structure:Series Connection - All SCRs
Number of SCRs, Diodes:2 SCRs
Voltage - Off State:1.6 kV
Current - On State (It (AV)) (Max):200 A
Current - On State (It (RMS)) (Max):314 A
Voltage - Gate Trigger (Vgt) (Max):3 V
Current - Gate Trigger (Igt) (Max):150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):4000A @ 50Hz
Current - Hold (Ih) (Max):60 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:Module
0 Remaining View Similar

In Stock

-
418

Please send RFQ , we will respond immediately.
