Please send RFQ , we will respond immediately.

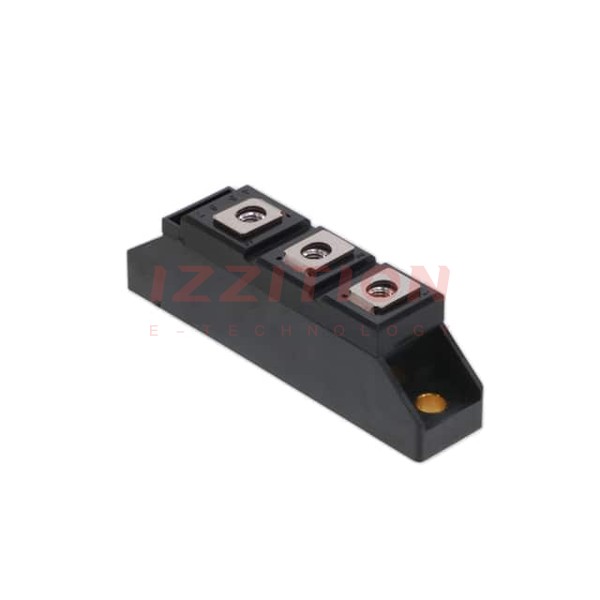

| Part Number | PD100MYN16 | PD100MYN18 | PD200MYN16 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1800 V | 1600 V |
| Current - Average Rectified (Io) (per Diode) | 100A | 100A | 200A |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 300 A | 1.35 V @ 300 A | 1.5 V @ 500 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 5 mA @ 1.6 kV | 5 mA @ 1.8 kV | 10 mA @ 1.6 kV |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
