Please send RFQ , we will respond immediately.

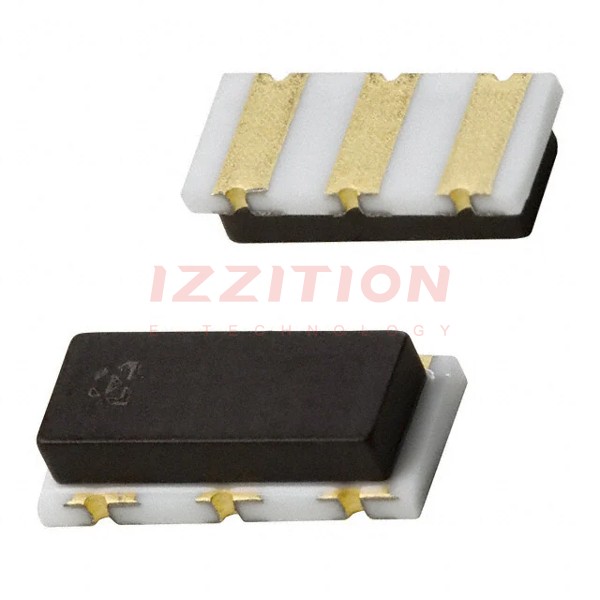

| Part Number | PBRC5.00HR50X000 | PBRC6.00HR50X000 | PBRC8.00HR50X000 | PBRC5.00MR50X000 | PBRC2.00HR50X000 | PBRC4.00HR50X000 | PBRC5.00GR50X000 |
|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 5 MHz | 6 MHz | 8 MHz | 5 MHz | 2 MHz | 4 MHz | 5 MHz |
| Frequency Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | - |
| Capacitance | 30 pF | 30 pF | 30 pF | 15 pF | 30 pF | 30 pF | - |
| Impedance | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 2-SMD, Non-Standard |
| Size / Dimension | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) |
| Height | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.047" (1.19mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
