Please send RFQ , we will respond immediately.

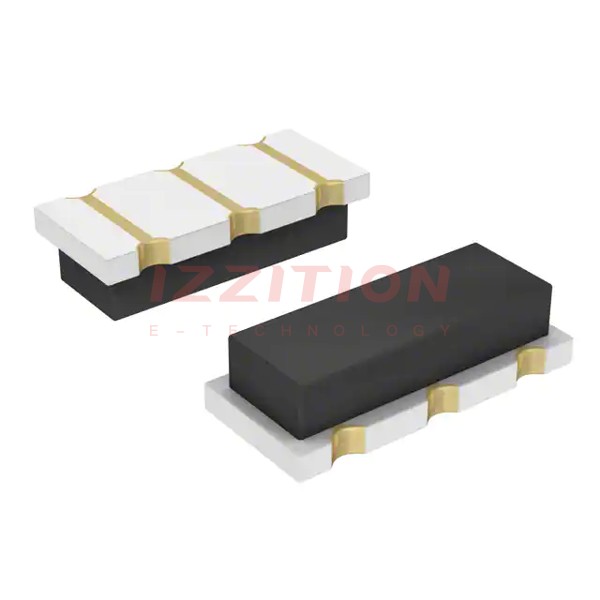

| Part Number | PBRC10.00MR50X000 | PBRC12.00MR50X000 | PBRC16.00MR50X000 | PBRC20.00MR50X000 | PBRC10.00HR50X000 |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 10 MHz | 12 MHz | 16 MHz | 20 MHz | 10 MHz |
| Frequency Stability | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Frequency Tolerance | ±0.7% | ±0.7% | ±0.7% | ±0.5% | ±0.7% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF |
| Impedance | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) |
| Height | 0.047" (1.19mm) | 0.047" (1.19mm) | 0.047" (1.19mm) | 0.047" (1.19mm) | 0.079" (2.00mm) |
