KYOCERA AVX-PBRC-4.00AR - Resonators Product Specifications and Latest Quotes

Part Number	PBRC-4.00AR	PBRC-4.50AR	PBRC-5.00AR	PBRC-6.00AR	PBRC-8.00AR	PBRC-2.00AR	PBRC-3.00AR
Manufacturer	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Type	Ceramic	Ceramic	Ceramic	Ceramic	Ceramic	Ceramic	Ceramic
Frequency	4 MHz	4.5 MHz	5 MHz	6 MHz	8 MHz	2 MHz	3 MHz
Frequency Stability	±0.3%	±0.3%	±0.3%	±0.3%	±0.3%	±0.3%	±0.3%
Frequency Tolerance	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Features	-	-	-	-	-	-	-
Capacitance	-	-	-	-	-	-	-
Impedance	30 Ohms	30 Ohms	30 Ohms	30 Ohms	30 Ohms	200 Ohms	100 Ohms
Operating Temperature	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	2-SMD, Non-Standard	2-SMD, Non-Standard	2-SMD, Non-Standard	2-SMD, Non-Standard	2-SMD, Non-Standard	2-SMD, Non-Standard	2-SMD, Non-Standard
Size / Dimension	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.291" L x 0.134" W (7.40mm x 3.40mm)
Height	0.091" (2.30mm)	0.091" (2.30mm)	0.091" (2.30mm)	0.091" (2.30mm)	0.091" (2.30mm)	0.091" (2.30mm)	0.091" (2.30mm)

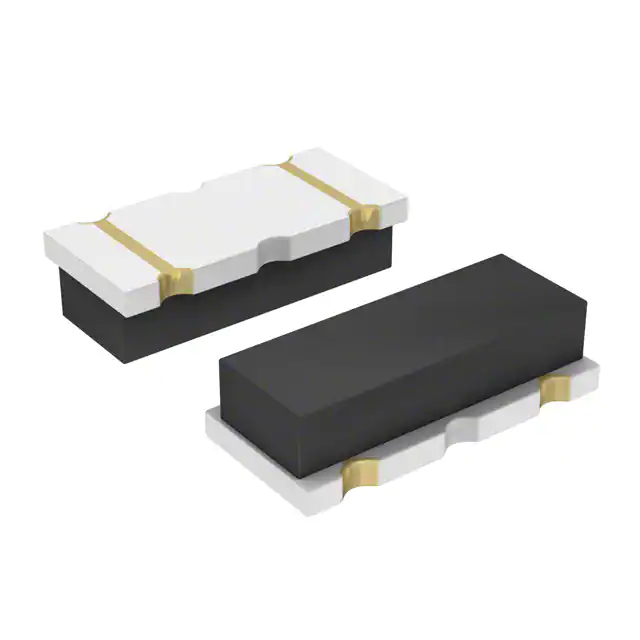

KYOCERA AVX PBRC-4.00AR
