Please send RFQ , we will respond immediately.

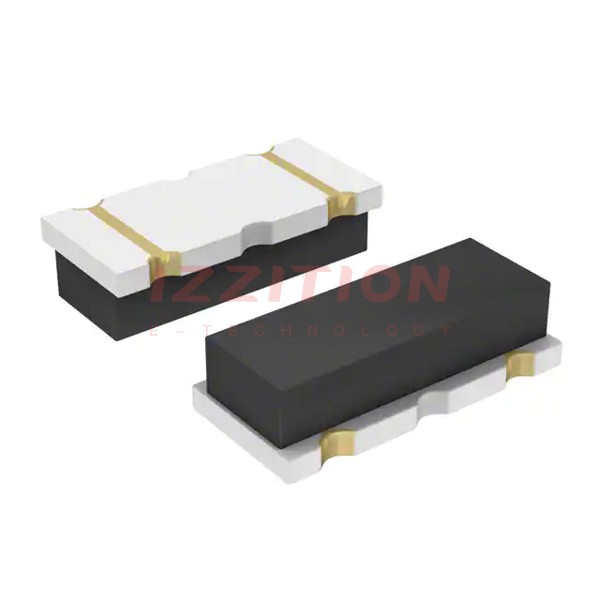

| Part Number | PBRC-3.58AR | PBRC-3.58BR | PBRC-3.68AR | PBRC-3.98AR |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 3.58 MHz | 3.58 MHz | 3.68 MHz | 3.98 MHz |
| Frequency Stability | ±0.3% | ±0.3% | ±0.3% | ±0.3% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | - | Built in Capacitor | - | - |
| Capacitance | - | 33 pF | - | - |
| Impedance | 30 Ohms | 30 Ohms | 30 Ohms | 30 Ohms |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Non-Standard | 3-SMD, Non-Standard | 2-SMD, Non-Standard | 2-SMD, Non-Standard |
| Size / Dimension | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.291" L x 0.134" W (7.40mm x 3.40mm) |
| Height | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.091" (2.30mm) |
