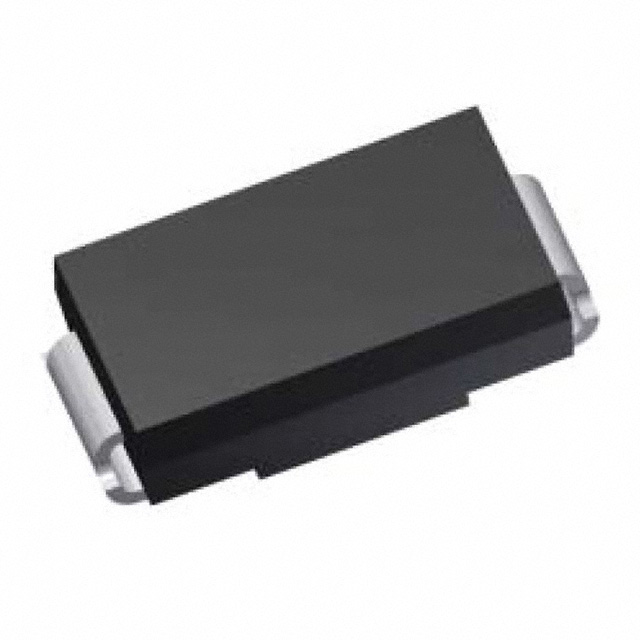

KYOCERA AVX-NSHS05A065 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	65 V
Current - Average Rectified (Io):	5A
Voltage - Forward (Vf) (Max) @ If:	640 mV @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 65 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-214AB, SMC
Supplier Device Package:	nSMC
Operating Temperature - Junction:	-40°C ~ 150°C

KYOCERA AVX NSHS05A065
