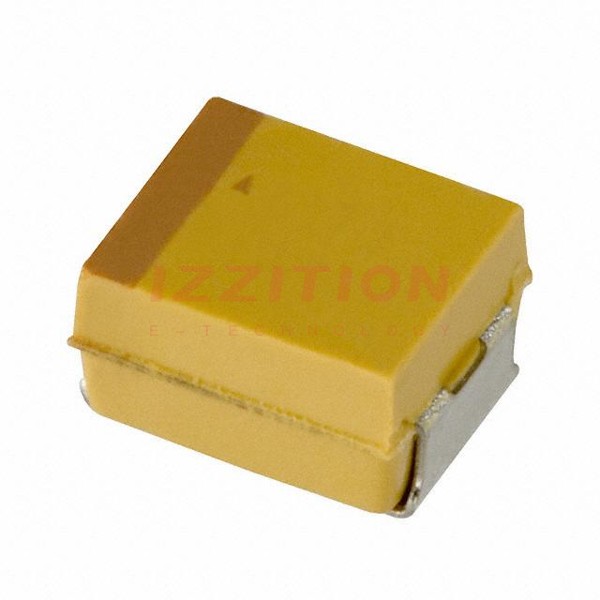

| Part Number | NOJT226M001RWJ | NOJT226M002RWJ | NOJT226M004RWJ | NOJT226M006RWJ | NOJP226M001RWJ | NOJS226M001RWJ |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 1.8 V | 2.5 V | 4 V | 6.3 V | 1.8 V | 1.8 V |
| ESR (Equivalent Series Resistance) | 1.8 Ohms | 1.9 Ohms | 1.8 Ohms | 1.8 Ohms | 3.8 Ohms | 1.9 Ohms |
| Current - Leakage | 1 µA | 1.1 µA | 1.8 µA | 2.6 µA | 1 µA | 1 µA |
| Dissipation Factor | 6% | 6% | 6% | 8% | 10% | 8% |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric), 1210 | 1411 (3528 Metric), 1210 | 1411 (3528 Metric), 1210 | 1411 (3528 Metric), 1210 | 0805 (2012 Metric) | 1206 (3216 Metric) |
| Manufacturer Size Code | T | T | T | T | P | S |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.059" (1.50mm) | 0.047" (1.20mm) |
| Features | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Supplier Device Package | 1210 (3528 Metric) | 1210 (3528 Metric) | 1210 (3528 Metric) | 1210 (3528 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.081" L x 0.053" W (2.05mm x 1.35mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
