Please send RFQ , we will respond immediately.

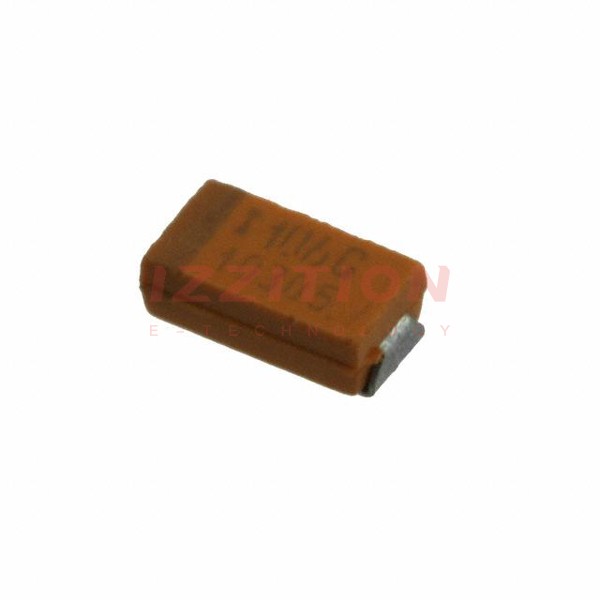

| Part Number | NOJS156M001RWJ | NOJS156M002RWJ | NOJP156M001RWJ |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 1.8 V | 2.5 V | 1.8 V |
| ESR (Equivalent Series Resistance) | 2 Ohms | 2 Ohms | 4.1 Ohms |
| Current - Leakage | 1 µA | 1 µA | 1 µA |
| Dissipation Factor | 6% | 8% | 10% |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) |
| Manufacturer Size Code | S | S | P |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.059" (1.50mm) |
| Features | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Supplier Device Package | 1206 (3216 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.081" L x 0.053" W (2.05mm x 1.35mm) |
