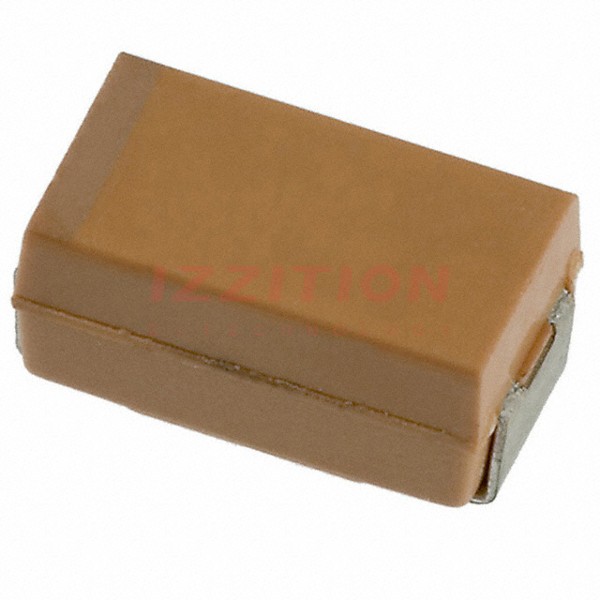

| Part Number | NOJF157M006RWJ | NOJY157M006RWJ | NOJC157M006RWJ | NOJD157M006RWJ | NOJF107M006RWJ |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 150 µF | 150 µF | 150 µF | 150 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 400 mOhms | 400 mOhms | 400 mOhms | 400 mOhms | 400 mOhms |
| Current - Leakage | 18 µA | 18 µA | 18 µA | 18 µA | 12 µA |
| Dissipation Factor | 8% | 6% | 6% | 6% | 8% |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) |
| Manufacturer Size Code | F | Y | C | D | F |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.110" (2.80mm) | 0.122" (3.10mm) | 0.079" (2.00mm) |
| Features | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Supplier Device Package | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
