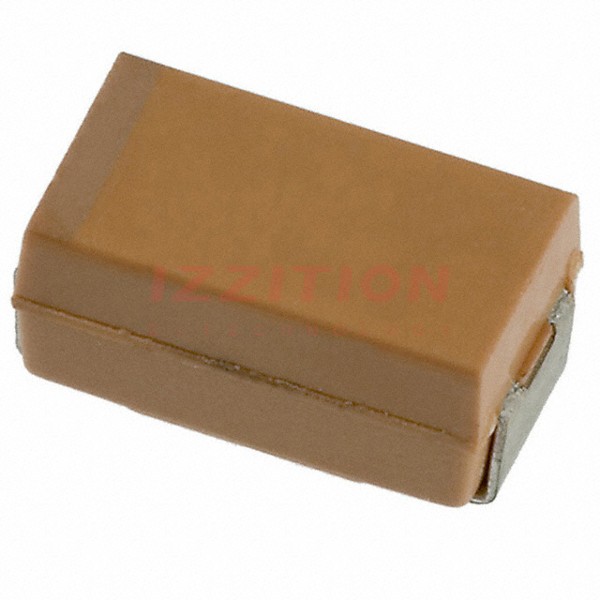

| Part Number | NOJF107M006RWJ | NOJY107M006RWJ | NOJF157M006RWJ | NOJB107M006RWJ | NOJC107M006RWJ | NOJD107M006RWJ |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 400 mOhms | 400 mOhms | 400 mOhms | 1.7 Ohms | 400 mOhms | 400 mOhms |
| Current - Leakage | 12 µA | 12 µA | 18 µA | 60 µA | 12 µA | 12 µA |
| Dissipation Factor | 8% | 6% | 8% | 20% | 8% | 6% |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) | 1411 (3528 Metric), 1210 | 2312 (6032 Metric) | 2917 (7343 Metric) |
| Manufacturer Size Code | F | Y | F | B | C | D |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.083" (2.10mm) | 0.110" (2.80mm) | 0.122" (3.10mm) |
| Features | - | - | - | - | Low ESR | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Supplier Device Package | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) | 1210 (3528 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
