Please send RFQ , we will respond immediately.

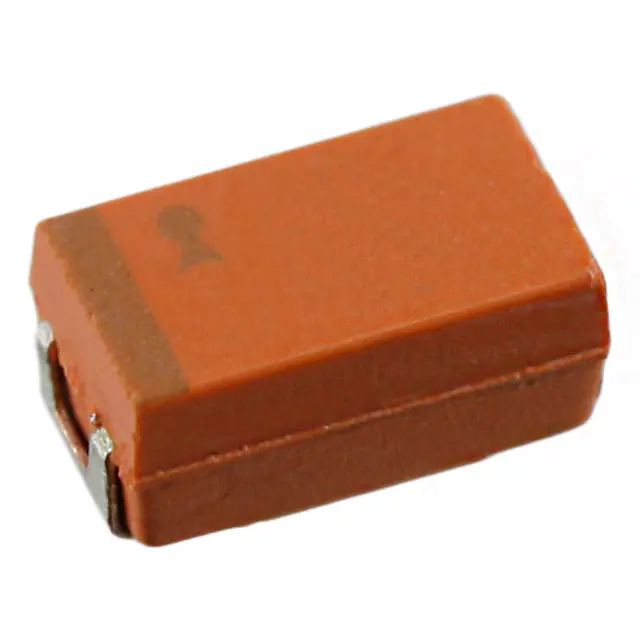

| Part Number | NOJC686M006RWJ | NOJY686M006RWJ | NOJX686M006RWJ | NOJB686M006RWJ | NOJC686M002RWJ | NOJC686M004RWJ |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 68 µF | 68 µF | 68 µF | 68 µF | 68 µF | 68 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 2.5 V | 4 V |
| ESR (Equivalent Series Resistance) | 500 mOhms | 500 mOhms | 500 mOhms | 1.5 Ohms | 500 mOhms | 500 mOhms |
| Current - Leakage | 8.2 µA | 8.2 µA | 8.2 µA | 8.2 µA | 3.4 µA | 5.4 µA |
| Dissipation Factor | 6% | 6% | 6% | 20% | 6% | 6% |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 1411 (3528 Metric), 1210 | 2312 (6032 Metric) | 2312 (6032 Metric) |
| Manufacturer Size Code | C | Y | X | B | C | C |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.079" (2.00mm) | 0.059" (1.50mm) | 0.083" (2.10mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
| Features | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Supplier Device Package | 2312 (6032 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 1210 (3528 Metric) | 2312 (6032 Metric) | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
