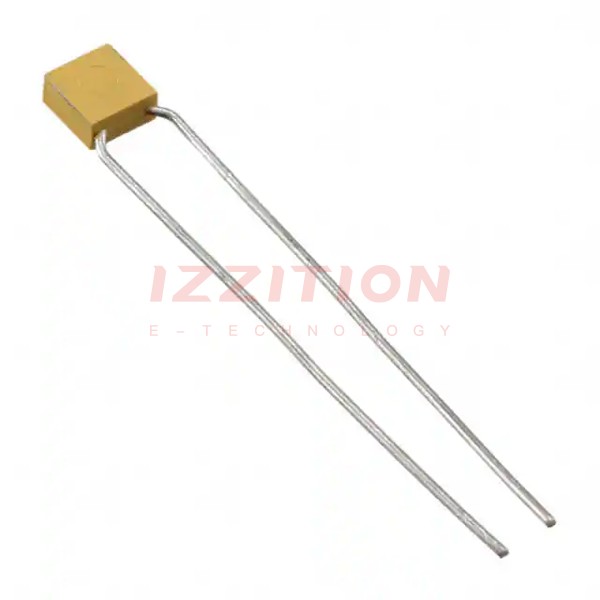

| Part Number | MR055A101JAA | MR055A301JAA | MR055A101KAA | MR055A102JAA | MR055A151JAA | MR055A181JAA | MR055A101FAA | MR055A101GAA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 pF | 300 pF | 100 pF | 1000 pF | 150 pF | 180 pF | 100 pF | 100 pF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±1% | ±2% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.190" L x 0.090" W (4.83mm x 2.28mm) |
| Height - Seated (Max) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) | 0.235" (5.97mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads |
