KYOCERA AVX-MR045A100JAA - Ceramic Capacitors Product Specifications and Latest Quotes

Part Number	MR045A100JAA	MR045A102JAA	MR045A120JAA	MR045A180JAA	MR045A100KAA	MR045A101JAA	MR045A150JAA
Manufacturer	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX
Product Status	Active	Active	Active	Active	Active	Active	Active
Capacitance	10 pF	1000 pF	12 pF	18 pF	10 pF	100 pF	15 pF
Tolerance	±5%	±5%	±5%	±5%	±10%	±5%	±5%
Voltage - Rated	50V	50V	50V	50V	50V	50V	50V
Temperature Coefficient	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Features	-	-	-	-	-	-	-
Ratings	-	-	-	-	-	-	-
Applications	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Failure Rate	-	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Size / Dimension	0.190" L x 0.090" W (4.83mm x 2.28mm)	0.190" L x 0.090" W (4.83mm x 2.28mm)	0.190" L x 0.090" W (4.83mm x 2.28mm)	0.190" L x 0.090" W (4.83mm x 2.28mm)	0.190" L x 0.090" W (4.83mm x 2.28mm)	0.190" L x 0.090" W (4.83mm x 2.28mm)	0.190" L x 0.090" W (4.83mm x 2.28mm)
Height - Seated (Max)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Thickness (Max)	-	-	-	-	-	-	-
Lead Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Lead Style	Straight	Straight	Straight	Straight	Straight	Straight	Straight

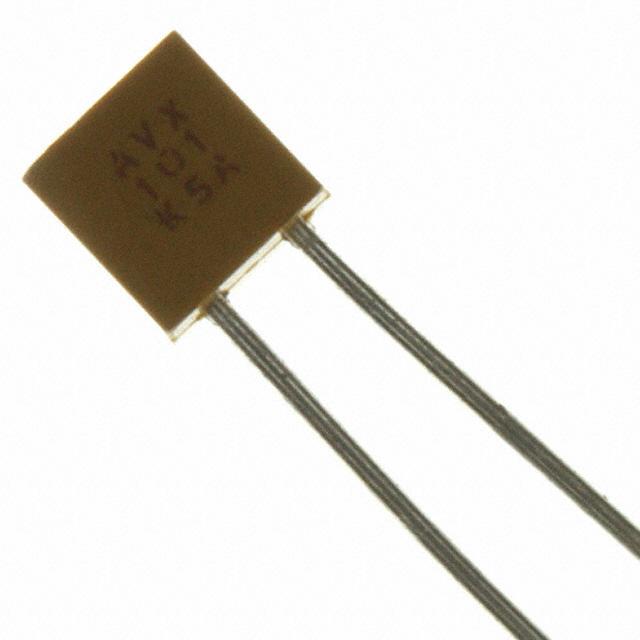

KYOCERA AVX MR045A100JAA
