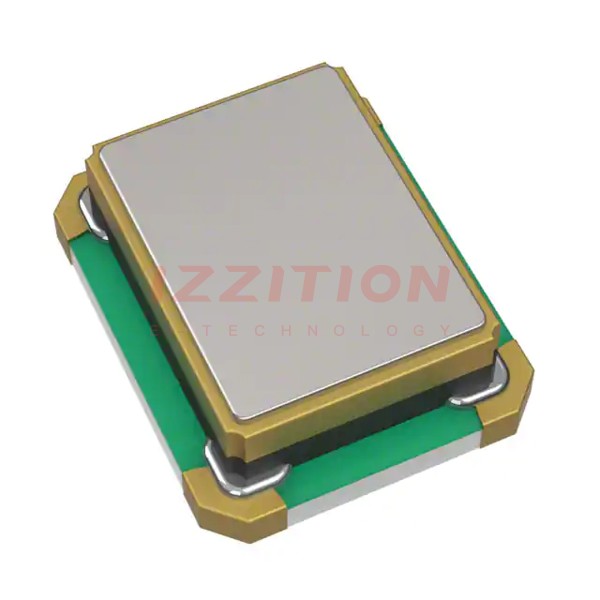

| Part Number | MC2520Z10.0000C19XSH | MC2520Z12.0000C19XSH | MC2520Z50.0000C19XSH | MC2520Z20.0000C19XSH | MC2520Z40.0000C19XSH | MC2520Z16.0000C19XSH | MC2520Z80.0000C19XSH | MC2520Z60.0000C19XSH |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 10 MHz | 12 MHz | 50 MHz | 20 MHz | 40 MHz | 16 MHz | 80 MHz | 60 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V |
| Frequency Stability | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 6.5mA | 6.5mA | 8.5mA | 7.3mA | 8mA | 7.3mA | 14.5mA | 8.5mA |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
