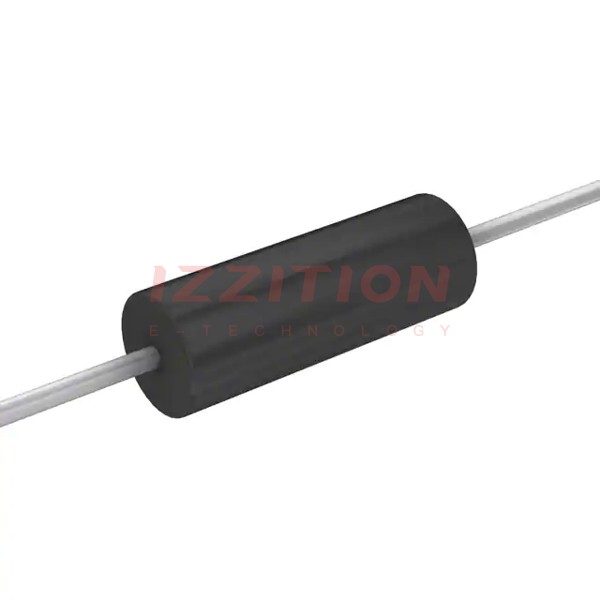

| Part Number | MA405C104MAA | MA305C104MAA | MA405C104JAA | MA405C104KAA |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±5% | ±10% |
| Voltage - Rated | 50V | 50V | 50V | 50V |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.140" Dia x 0.390" L (3.56mm x 9.91mm) | 0.130" Dia x 0.240" L (3.30mm x 6.09mm) | 0.140" Dia x 0.390" L (3.56mm x 9.91mm) | 0.140" Dia x 0.390" L (3.56mm x 9.91mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Lead Style | Straight | Straight | Straight | Straight |
