Please send RFQ , we will respond immediately.

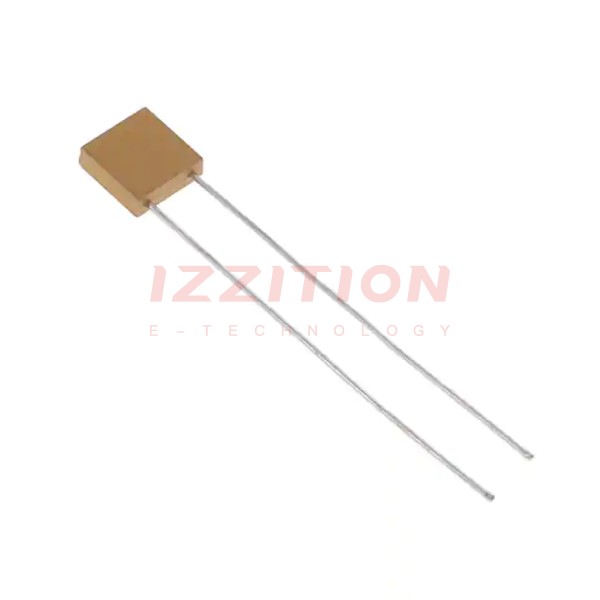

| Part Number | M39014/02-1418V | M39014/02-1419V | M39014/02-1411V | M39014/02-1415V |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KEMET | KYOCERA AVX | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.82 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 50V | 50V |
| Temperature Coefficient | BX | BX | BX | BX |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | S (0.001%) | S (0.001%) | P (0.1%) | R (0.01%) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.290" L x 0.090" W (7.37mm x 2.29mm) |
| Height - Seated (Max) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Straight | Straight | Straight | Straight |
