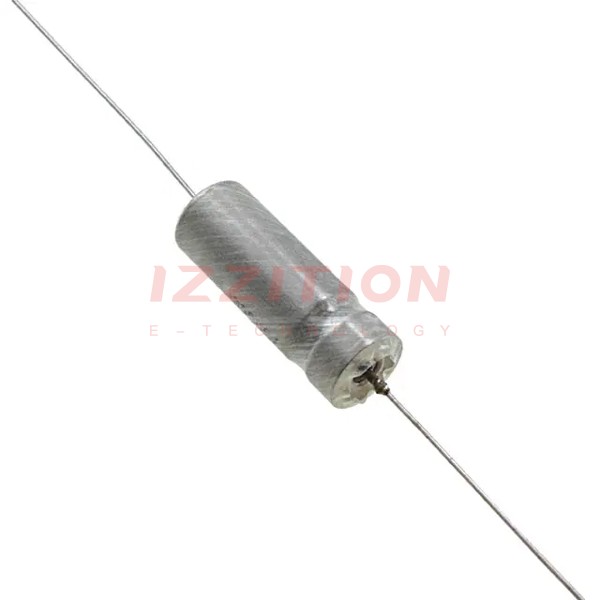

| Part Number | M39006/33-0010 | M39006/33-0040 | M39006/33-1010 | M39006/33-0018 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1800 µF | 560 µF | 1800 µF | 1000 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 25 V | 60 V | 25 V | 30 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 500mOhm @ 120Hz | 800mOhm @ 120Hz | 500mOhm @ 120Hz | 700mOhm @ 120Hz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) |
| Height - Seated (Max) | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | E | E | E | D |
| Ratings | - | - | - | - |
| Features | Wet Tantalum | Wet Tantalum | Wet Tantalum | Wet Tantalum |
| Failure Rate | - | - | - | - |
