Please send RFQ , we will respond immediately.

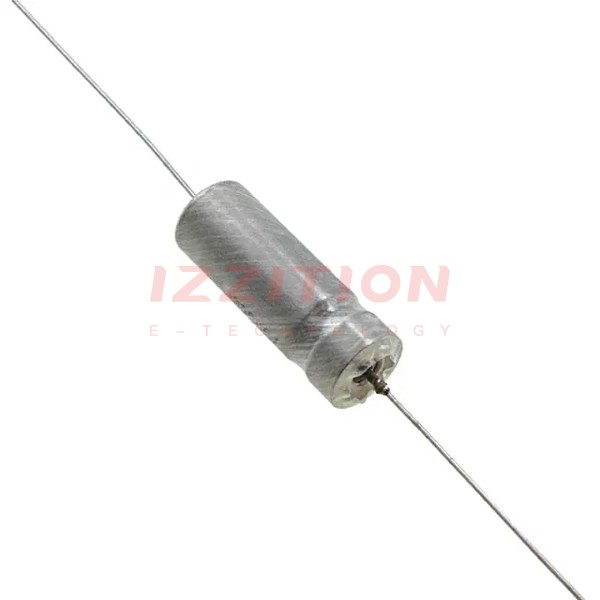

| Part Number | M39006/25-0080 | M39006/25-0082 | M39006/25-0084 | M39006/25-0086 | M39006/25-0088 | M39006/25-0040 | M39006/25-0050 | M39006/25-0060 | M39006/25-0070 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | EXXELIA | EXXELIA | EXXELIA | EXXELIA | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 120 µF | 6.8 µF | 27 µF | 47 µF | 82 µF | 680 µF | 33 µF | 100 µF | 180 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 100 V | 125 V | 125 V | 125 V | 125 V | 25 V | 50 V | 60 V | 75 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 2.76Ohm | 11.71Ohm | 3.54Ohm | 2.23Ohm | 2.82Ohm | 1.23Ohm | 4.95Ohm | 2.52Ohm | 2.23Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T4 | T1 | T2 | T3 | T4 | T4 | T2 | T2 | T2 |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
