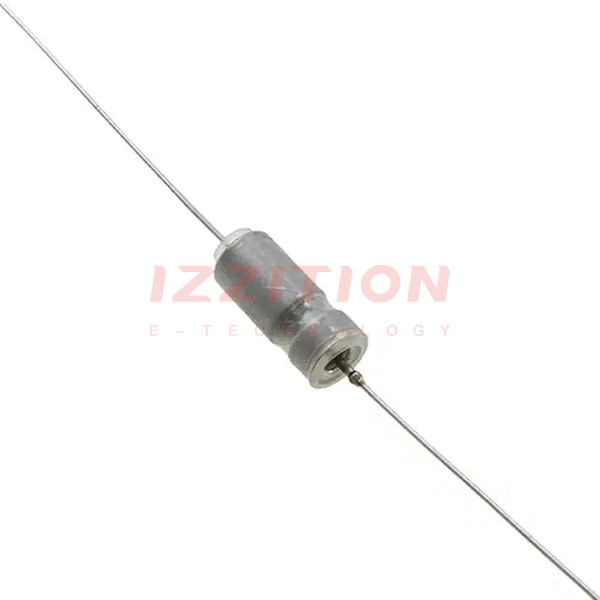

| Part Number | M39006/22-0192 | M39006/22-0199 | M39006/22-0194 | M39006/22-0102 | M39006/22-0122 | M39006/22-0142 | M39006/22-0162 | M39006/22-0182 | M39006/22-0190 | M39006/22-0191 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | EXXELIA | KYOCERA AVX | EXXELIA | EXXELIA | EXXELIA | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 86 µF | 30 µF | 8 µF | 5 µF | 4 µF | 3.5 µF | 2.5 µF | 22 µF | 22 µF |
| Tolerance | ±5% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 100 V | 100 V | 100 V | 30 V | 50 V | 60 V | 75 V | 100 V | 100 V | 100 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 4.52Ohm | 1.54Ohm | 3.1Ohm | 6.64Ohm | 7.96Ohm | 9.29Ohm | 9.48Ohm | 10.62Ohm | 4.52Ohm | 4.52Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | - | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T2 | T4 | T3 | T1 | - | T1 | T1 | T1 | T2 | T2 |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum |
| Failure Rate | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
