Please send RFQ , we will respond immediately.

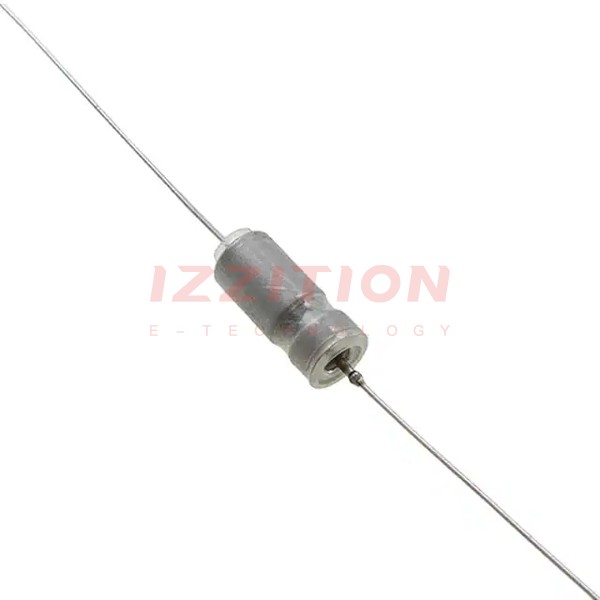

| Part Number | M39006/22-0151 | M39006/22-0651 | M39006/22-0351 | M39006/22-0551 | M39006/22-0191 | M39006/22-0157 | M39006/22-0171 | M39006/22-0154 | M39006/22-0156 | M39006/22-0101 | M39006/22-0111 | M39006/22-0121 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | Vishay Sprague | Vishay Sprague | Vishay Sprague | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 39 µF | 14 µF | 47 µF | 68 µF | 22 µF | 68 µF | 33 µF | 50 µF | 68 µF | 8 µF | 68 µF | 5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±20% | ±20% | ±10% | ±20% |
| Voltage - Rated | 60 V | 125 V | 50 V | 30 V | 100 V | 60 V | 75 V | 60 V | 60 V | 30 V | 30 V | 50 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 3.4Ohm | - | - | - | 4.52Ohm | 2.54Ohm | 4.02Ohm | 2.65Ohm | 2.54Ohm | 6.64Ohm | 2.54Ohm | 7.96Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.704" L (7.92mm x 17.88mm) | 0.312" Dia x 0.704" L (7.92mm x 17.88mm) | 0.312" Dia x 0.704" L (7.92mm x 17.88mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | - | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | - |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T2 | T2 | T2 | T2 | T2 | T3 | T2 | T3 | T3 | - | T2 | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum |
| Failure Rate | M (1%) | R (0.01%) | P (0.1%) | R (0.01%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
