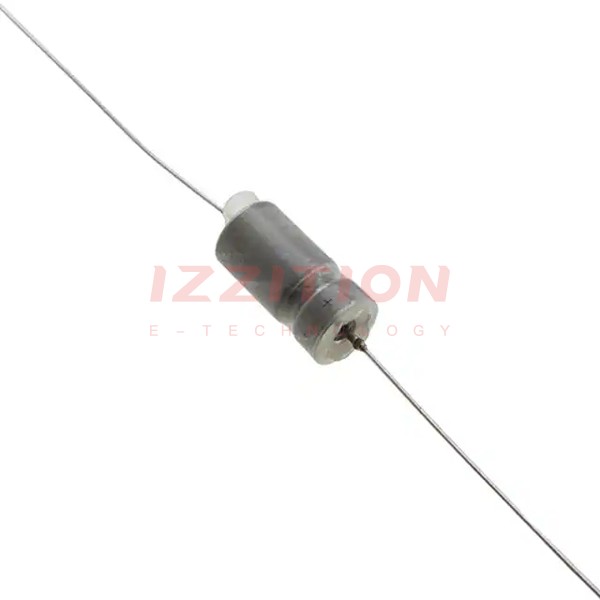

| Part Number | M39006/22-0137 | M39006/22-0167 | M39006/22-0157 | M39006/22-0139 | M39006/22-0437 | M39006/22-0637 | M39006/22-0107 | M39006/22-0117 | M39006/22-0130 | M39006/22-0133 | M39006/22-0134 | M39006/22-0136 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | EXXELIA | Vishay Sprague | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 82 µF | 15 µF | 68 µF | 160 µF | 25 µF | 43 µF | 40 µF | 150 µF | 47 µF | 60 µF | 60 µF | 82 µF |
| Tolerance | ±10% | ±20% | ±10% | ±20% | ±10% | ±10% | ±20% | ±10% | ±20% | ±20% | ±10% | ±20% |
| Voltage - Rated | 50 V | 75 V | 60 V | 50 V | 125 V | 100 V | 30 V | 30 V | 50 V | 50 V | 50 V | 50 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 2.43Ohm | 5.31Ohm | 2.54Ohm | 1.41Ohm | 3.18Ohm | - | 3.32Ohm | 2.03Ohm | 3.11Ohm | 2.65Ohm | 2.65Ohm | 2.43Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.406" Dia x 0.828" L (10.31mm x 21.03mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T3 | T2 | T3 | T4 | T3 | T3 | T2 | T3 | T2 | T3 | T3 | T3 |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum |
| Failure Rate | M (1%) | M (1%) | M (1%) | M (1%) | P (0.1%) | R (0.01%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
