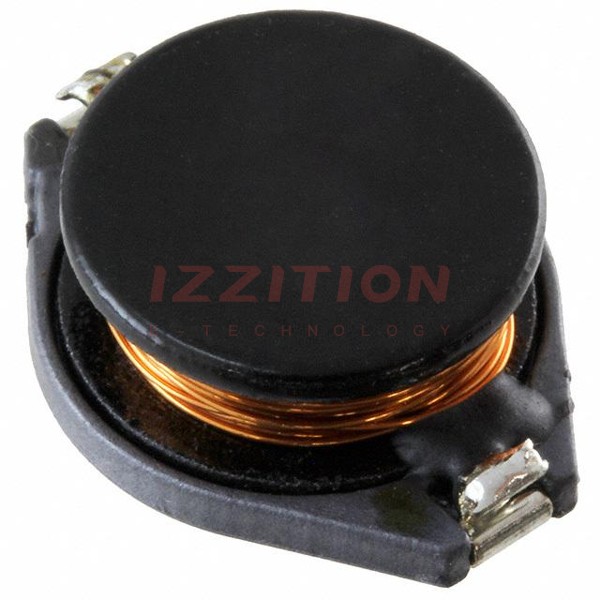

| Part Number | LMXN1915M102CTAS | LMXN1915M100CTAS |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 mH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | 1A | 10A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.8Ohm Max | 31mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.280" (7.11mm) | 0.280" (7.11mm) |
