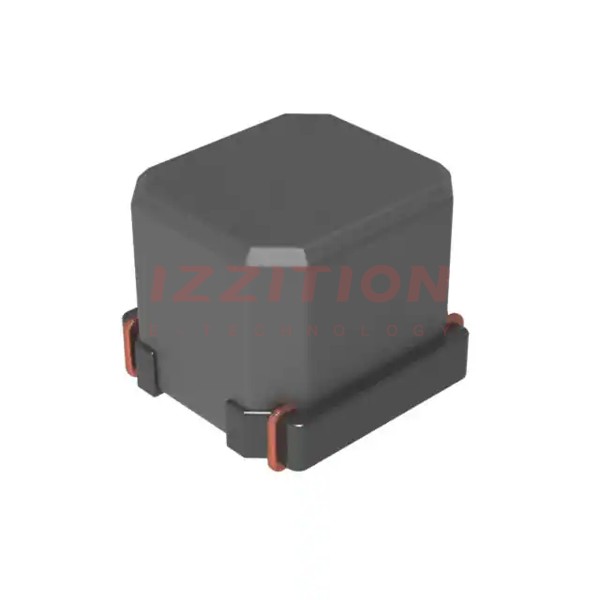

| Part Number | LMLP13B3M1R2DTAS | LMLP13B3M8R2DTAS | LMLP13B3M1R5DTAS | LMLP13B3M1R8DTAS | LMLP1313M1R2DTAS | LMLP13B3M1R0DTAS |
|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 1.2 µH | 8.2 µH | 1.5 µH | 1.8 µH | 1.2 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 30 A | 10.5 A | 27 A | 24 A | 25 A | 32 A |
| Current - Saturation (Isat) | 48A | 16A | 45A | 41A | 49A | 49A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.5mOhm Max | 15.5mOhm Max | 3mOhm Max | 3.2mOhm Max | 3.5mOhm Max | 2mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.531" L x 0.504" W (13.50mm x 12.80mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.197" (5.00mm) | 0.256" (6.50mm) |
