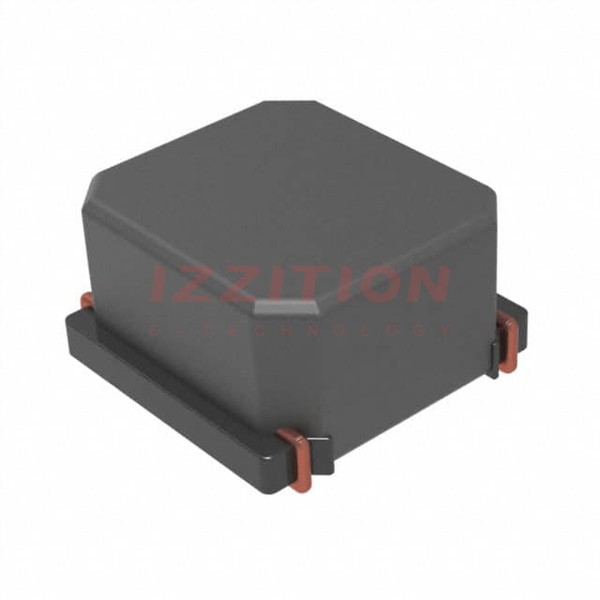

| Part Number | LMLP0808M100CTAS | LMLP0808M150CTAS |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.1 A | 2.4 A |
| Current - Saturation (Isat) | 3.4A | 2.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 34mOhm | 50mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | 0.165" (4.20mm) |
